Setting up Cloudflare with Blossom

Categories: cdn cloudflare security
3 min read

This guide walks you through setting up Cloudflare as a Content Delivery Network (CDN) in front of your Blossom application.

Prerequisites

  • A Blossom application
  • A custom domain (e.g., mysite.com)
  • A Cloudflare account

Configuration Steps

1. Cloudflare Setup

  1. Add your domain to Cloudflare
  2. Update your domain’s nameservers to use Cloudflare’s nameservers
  3. Wait for DNS propagation (usually takes 24-48 hours)

2. DNS Configuration

Create DNS record in Cloudflare:

mysite.com -> [Your Blossom Load Balancer IP] (A record)

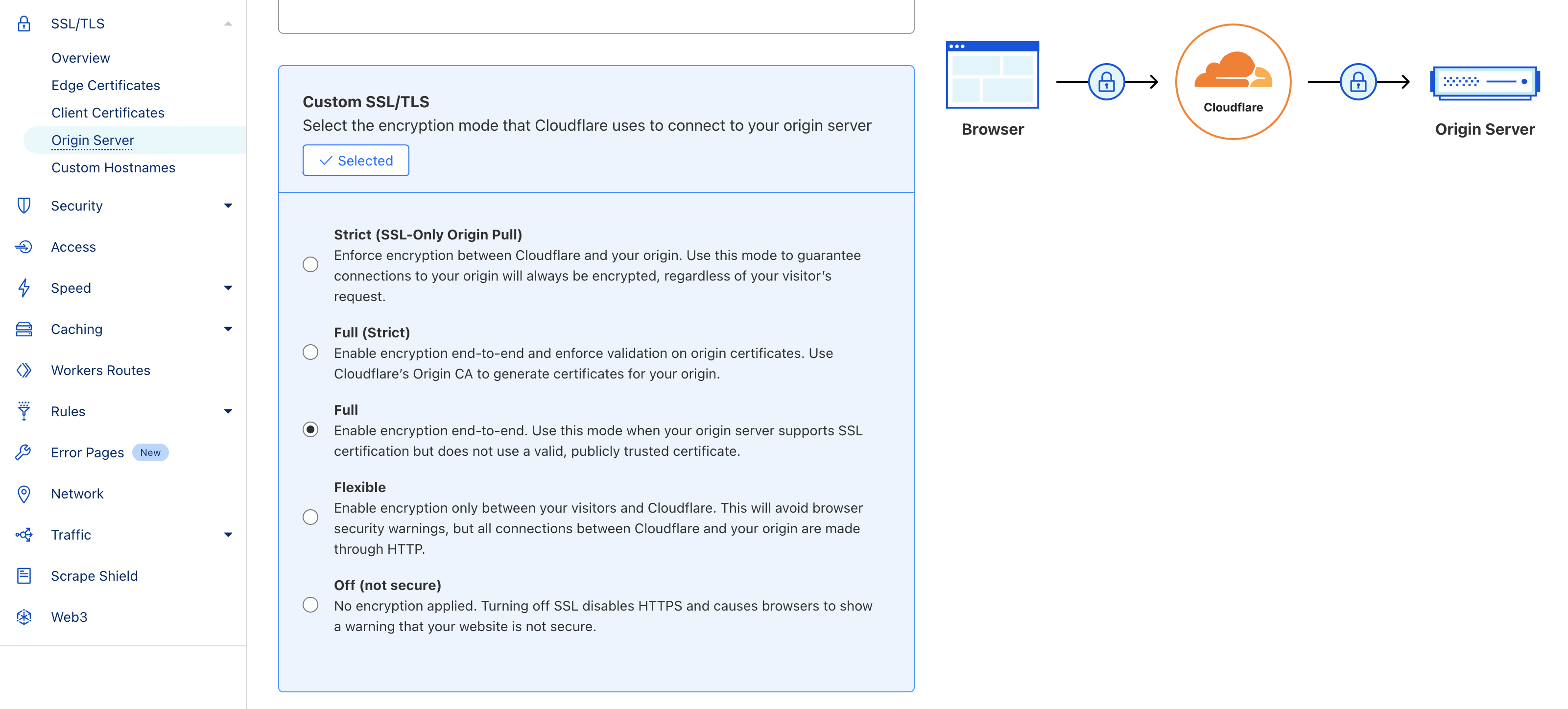

3. Cloudflare SSL/TLS Configuration

Configure SSL/TLS settings in Cloudflare:

  1. Go to SSL/TLS settings in your Cloudflare dashboard
  2. Choose one of these options:
    • Full SSL: Encrypts traffic end-to-end. This is recommended. (Will use Blossom Custom Domain Self-signed SSL)
    • Flexible SSL: Encrypts traffic between users and Cloudflare only (Will use Blossom Custom Domain HTTP Only)

4. Blossom Custom Domain

Configure a custom domain in your Blossom application:

  • mysite.com with the appropriate SSL mode:
    • Self-signed SSL for Full SSL (Using CloudFlare Full SSL)
    • HTTP Only for Flexible SSL (Using CloudFlare Flexible SSL)
The SSL mode in Blossom should match your Cloudflare SSL/TLS configuration. If you're using Flexible SSL in Cloudflare, use HTTP Only in Blossom. If you're using Full SSL in Cloudflare, use Self-signed SSL in Blossom for end-to-end encryption.

Important Notes

  • Cloudflare provides free SSL certificates for your domain
  • The orange cloud icon in Cloudflare DNS settings should be enabled (proxied) for your domain
  • Cloudflare automatically handles SSL certificate renewal
  • You can use Cloudflare’s Page Rules to enforce HTTPS

Rails CDN SSL Configuration

When using Rails with a CDN, you might need to configure SSL settings in your Rails application.

  • If you’re using a Blossom Custom Domain with HTTP Only then you need assume_ssl = true and force_ssl = true
  • If you’re using SSL at the origin servers though, then you want assume_ssl = false and force_ssl = true.

Here’s a clean way configuring this with an environment variable.

config/environments/production.rb

# When using a CDN, we assume all access to the app is happening through a SSL-terminating reverse proxy
config.assume_ssl = ENV["CDN"]
# Disable force_ssl since the CDN handles SSL termination
config.force_ssl = !ENV["CDN"]

This configuration is important because:

  • Rails by default enables force_ssl in production mode
  • This can cause redirect loops when behind a CDN
  • The redirects will show as coming from Caddy (your reverse proxy) rather than Rails
  • Setting assume_ssl = true tells Rails to behave as if it’s behind SSL while allowing HTTP connections
  • Instead, you should configure your CDN to perform the redirect of http to https

Debugging Tips

  • To test your setup, use:
    curl -svo /dev/null http://mysite.com
  • Check Cloudflare’s SSL/TLS encryption mode matches your Blossom configuration
  • Verify DNS records are properly configured and proxied through Cloudflare

Troubleshooting

  • SSL Errors: Verify SSL/TLS mode matches between Cloudflare and Blossom
  • 502 Bad Gateway: Check if your Blossom server is accessible and the SSL configuration is correct
  • DNS Issues: Ensure DNS records are properly configured and proxied through Cloudflare
  • Connection Issues:
    • Verify your domain is using Cloudflare nameservers
    • Check if the orange cloud (proxy) is enabled for your DNS records
    • Confirm your Blossom server is accepting connections on the configured protocol (HTTP/HTTPS)
